TropiSCO South East Asia

Monitoring tropical deforestation using spatial data

The objective of the TropiSCO project is to monitor tropical deforestation using radar images from the Sentinel-1 satellite on three continents (Africa, South-East Asia, South America) and then on a global scale.

This data will have many uses, such as combating illegal logging and mining, illegal agricultural crops and wildlife trafficking, as well as providing easily usable data and statistics.

See the main page of the project TropiSCO Amazonia

Results in South East Asia

In the frame of the TropiSCO project, the production is performed in two steps: 1) we first produce weekly forest loss national maps from 2018 to 2021 in one shot, and 2) automatize the process so that the forest loss maps are updated every week. In December 2021, we completed the production of the forest loss maps over Vietnam, Cambodia, and Laos (>750,000 km2 in total).

The map shown below provides clear hints of the spatial and temporal distribution of forest losses. Note that the map was thoroughly validated in Mermoz et al. (2021). The estimated user accuracy of the forest loss map was 0.95 for forest disturbances and 0.99 for intact forest, and the estimated producer’s accuracy was 0.90 for forest disturbances and 0.99 for intact forest, with a minimum mapping unit of 0.1 ha. These results highlight the fact that the method provides not only quick alerts but also reliable detections that can be used to calculate weekly, monthly, or annual forest loss statistics at a national scale.

Spatial distribution of deforestation. For example, the map highlights the fact that forest losses are prevalent in the three countries and occur everywhere. The map also demonstrates the striking difference between the low forest loss rates in Vietnam (northern Vietnam was severely affected in the last few decades and its more efforts are being made to preserve its forests now) and the high forest losses currently happening in northern Laos. (Ingalls et al., 2018).

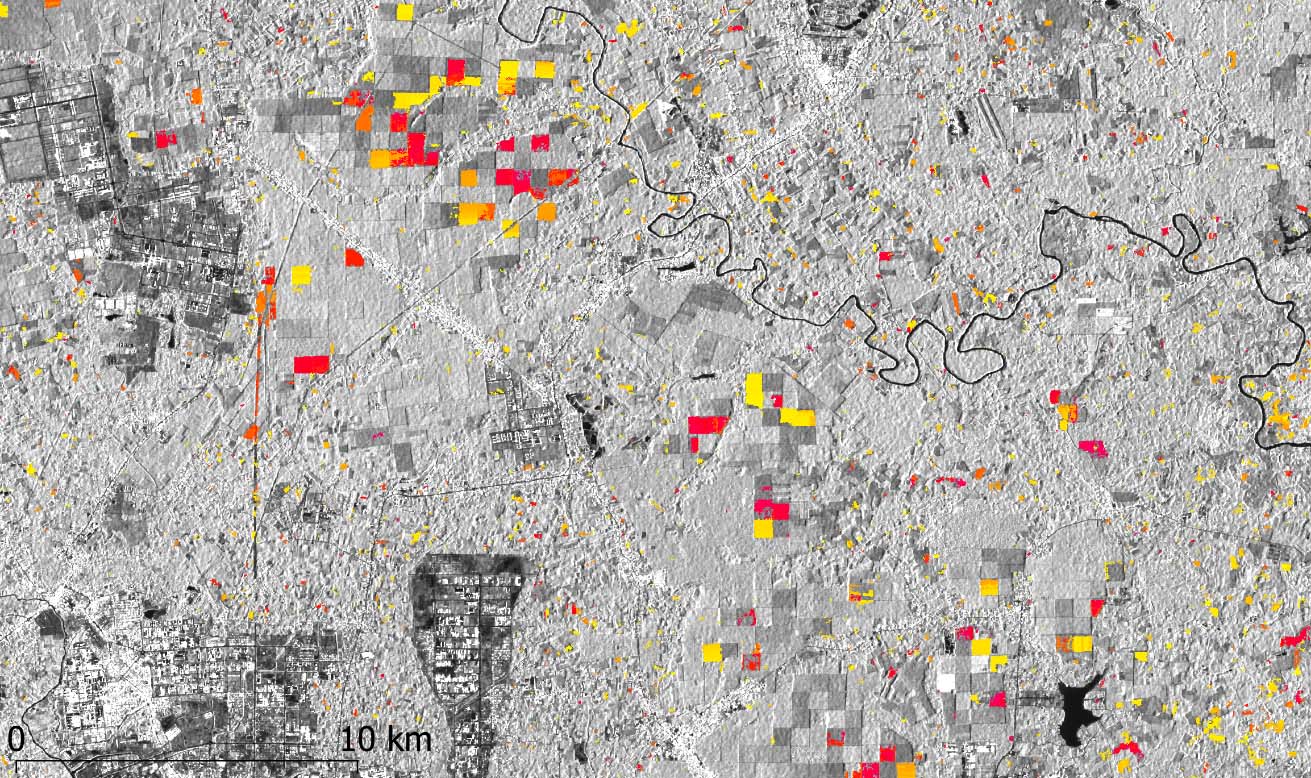

Specific areas of the whole forest loss map are shown in the figure below. Northern Laos recently experienced the largest deforestation rates as compared with the rest of Laos, Cambodia, and Vietnam. In northwestern Laos, forest was cut mostly for commodities, as seen in subfigure 1 and is also experiencing a rubber boom (Xiao et al., 2020). Subfigure 3 shows infrastructure construction at the border between north and central Laos, whereas Subfigure 5, in central Laos, shows cashew plantations (Hurno et al., 2018). Compared to the plantations located in northern Laos, the cashew plantations in the center of Laos are much more numerous and far smaller. Pulp tree, sugarcane, coffee, and rubber plantations can be found in southern Laos (Subfigure 7). In this region, land concessions are mostly conceded to Vietnamese investors in rubber. Figure 5.8 shows an area where pulp trees have been planted en masse, which is the center of a huge area of plantations that extends roughly from 13°N to 18°N; the forest loss in this area corresponds mostly to plantation logging. Logging roads are visible in Subfigure 11, whereas large areas of timber and particularly rubber plantations can be seen in Subfigures 9 and 11–13. Although southwestern Cambodia has been partially preserved thus far, as in the Cardamom mountains that constitute one of the last remaining natural forests in southeast Asia, Subfigure 10 shows that forest loss occurs in this region.

Mapping deforestation in Vietnam, Laos and Cambodia based on Sentinel-1 data. © GlobEO

The temporal distribution of detected forest loss over Vietnam, Cambodia, and Laos from January 2018 to July  2021 is shown in the Figure below. Forest loss is detected throughout the year in Vietnam, with an expected and systematic peak of losses occurring during the dry season between December and April in the three countries. Note that this finding may be exacerbated by the fact that soil moisture can lead to an underestimation of forest loss. During the wet season, the amount of forest loss is higher in Vietnam whereas during the dry season, the amount of forest loss is higher in Laos.

Estimated monthly logging area in Vietnam, Cambodia and Laos, January 2018 to July 2021. © Globeo

References

• Ingalls, M. L., Meyfroidt, P., To, P. X., Kenney-Lazar, M., & Epprecht, M. (2018). The transboundary displacement of deforestation under REDD+: Problematic intersections between the trade of forest-risk commodities and land grabbing in the Mekong region. Global Environmental Change, 50, 255-267.
• Mermoz, S., Bouvet, A., Koleck, T., Ballère, M., & Le Toan, T. (2021). Continuous Detection of Forest Loss in Vietnam, Laos, and Cambodia Using Sentinel-1 Data. Remote Sensing, 13(23), 4877.
• Witness, G. (2013). Rubber barons: How Vietnamese companies and international financiers are driving a land grabbing crisis in Cambodia and Laos. London: Global Witness.
• Xiao, C., Li, P., Feng, Z., Liu, Y., & Zhang, X. (2020). Sentinel-2 red-edge spectral indices (RESI) suitability for mapping rubber boom in Luang Namtha Province, northern Lao PDR. International Journal of Applied Earth Observation and Geoinformation, 93, 102176.
